Centrifugal separators

Bulk liquid removal

For use with compressors that do not already have a built in liquid separator, the Kaeser KC centrifugal separators are highly effective at removing condensed liquid immediately after the compressor's discharge point. This improves the effectiveness of downstream dryers and filtration. KC centrifugal separators are equipped with the economical and extremely reliable ECO-DRAIN 31 condensate drain, which features a test button and alarm contact. They're also very easy to combine with KAESER FILTERS and can be wall-mounted using optional wall mounts – for highly straightforward installation.

  • Separation rates up to 99% in the flow rate range of 32 - 11,875 cfm
  • Designed for working pressures up to 232 psi
  • With ECO-DRAIN 31 electronic condensate drain
  • With optional wall mounts (bowl style models)

Special product variants available in silicon-free design (bowl style models).

Your advantages

  • Comprehensive efficiency:
    KAESER has optimized the air flow in the KC centrifugal separator using the most advanced flow simulations and measured it as per ISO 12500-4. The results: a swirl insert with an excellent separation rate of up to 99% – stable over a broad output range and with pressure loss of less than 1.45 psi.
  • Durable and value-retaining
    With a seawater-resistant aluminum enclosure and an additional passivation coating (bowl style models), our centrifugal separators are built to keep on running. The compressed air connections on the enclosure are thus always a perfect fit for our rotary screw compressors.
  • Maintenance-free:
    KAESER KC centrifugal separators are maintenance-free. Furthermore, the ECO-DRAIN condensate drain is equipped with a service module for highly reliable maintenance.

Product details

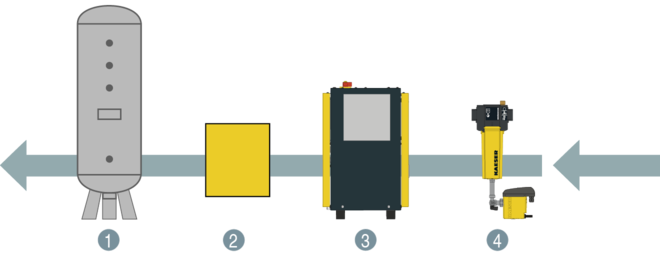

Example of installation in the compressed air station
Centrifugal separator – example installation
  1. Air receiver
  2. Optional filtration
  1. Refrigerated dryer
  2. Centrifugal separator
